PIKE ARMS® ELITE22TD™
80% TAKEDOWN RECEIVER
RECEIVER HARDWARE BUNDLE
FOR PIKE ARMS® ELITE22TD™ 80% RECEIVER

PIKE ARMS® ELITE22TD™ 80% TAKEDOWN RECEIVER HARDWARE BUNDLE TO COMPLETE PIKE ARMS® ELITE22TD™ 80% RECEIVER

In order to complete a Pike Arms® ELITE22TD™ Takedown 80% receiver blank, you will need the barrel bushing receiver hardware in additon to the receiver blank.  The Pike Arms® ELITE22TD™ Takedown 80% Receiver Blanks are sold without the associated takedown receiver hardware so if you already have the required additional parts, you are not forced to purchase them. The receiver hardware parts are available individually per each corresponding part number below or you can purchase all of the required receiver hardware that is specific to a takedown receiver in this money saving bundle.

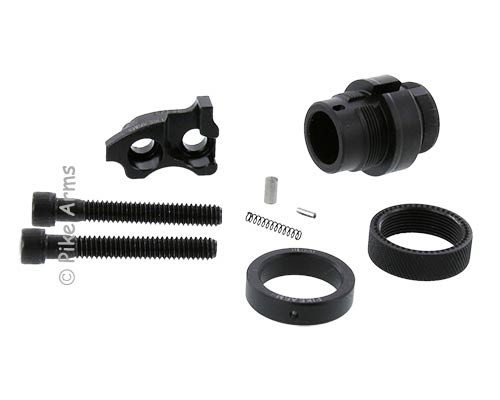

The follow parts are included in this Pike Arms® Elite22TD™ Takedown Receiver Hardware Bundle:

#08281 - Pike Arms® ELITE22TD™ Takedown Receiver Bushing

#08556 - Pike Arms® ELITE22TD™ Takedown Receiver Locking Block

#08282 - Pike Arms® ELITE22TD™ Takedown Receiver Barrel Adjustment Ring

#08610 - Pike Arms® ELITE22TD™ Takedown Receiver Barrel Bushing Spacer

#08611 - Pike Arms® ELITE22TD™ Takedown Receiver Barrel Bushing Spacer Roll Pin

#08620 - Pike Arms® ELITE22TD™ Takedown Receiver Barrel Adjustment Ring Detent

#08621 - Pike Arms® ELITE22TD™ Takedown Receiver Barrel Adjustment Ring Detent Spring

#00910 - Pike Arms® V-Block Blue Steel Cap Screws (2)

Each part is CNC machined from billet steel and then professionally heat treat hardened for durability and reliabily.  None of the parts are cast or MIM injection molded.  The parts have a  black oxide / blued finish and are ready to be installed in your Pike Arms® Elite22TD™ Takedown 80% Receiver.

NOTE 1: The PIKE ARMS® ELITE22TD™ Takedown RECEIVER BUSHING included with this Pike Arms® ELITE22TD™ Takedown Receiver Hardware Bundle is designed to be used ONLY with the PIKE ARMS® ELITE22TD™ receivers (both serialized / completed and 80%) and is NOT designed to be used with a Ruger® factory Takedown receiver.  The receiver hole in a Ruger® factory takedown receiver is minimally a different diameter than the included Pike Arms® Elite22TD™ Takedown Receiver Bushing and they are therefore not compatible.  In order to simplify the tooling requirements and minimize tooling costs for our customers, our Pike Arms® Elite22TD™ Takedown Receivers use a standard hole side for the barrel bushing in order to make tooling more readily available and affordable when completing a Pike Arms® ELITE22TD™ 80% receiver and therefore the non-standard size hole in the Ruger® factory takedown receiver requires the use of a Ruger® factory barrel bushing.  However, once installed in the receiver, the Pike Arms® ELITE22TD™ Takedown Receiver Bushing is identical in appearance and function to the Ruger® factory barrel bushing and Ruger® factory barrel assemblies can be used interchangeably and without any modifications.

NOTE 2: The parts in this ELITE22TD™ RECEIVER BUNDLE are specifically for the receiver and do NOT include hardware that is specific to and attached to the barrel itself.  All parts related to the takedown barrel assembly that are attached to the receiver when the barrel is removed are included in this bundle.  Parts that are attached to the barrel when the barrel is removed from the receiver are available separately (Part #08651) and are NOT included with this Elite22TD™ Receiver Hardware Bundle.

NOTE 3: This hardware bundle is specifically for completing a Pike Arms® ELITE22TD™ 80% receiver and it DOES include the receiver barrel bushing.  For 100% serialized FFL restricted receivers (which are shippedwith the barrel bushing already installed), you would instead want the hardware bundle Part #08759 that does NOT include the barrel bushing (since it is already installed in the finished serial numbered receiver).
