PIKE ARMS®
PICATINNY EXTENDED REVERSIBLE
3/8" HEIGHT SCOPE RAIL FOR:
  - ELITE22D™ RECEIVERS
  - ELITE22TD™ TAKEDOWN RECEIVERS
  - ELITE22TD™ 80% RECEIVER BLANKS

PIKE ARMS® EXTENDED REVERSIBLE 3/8" HEIGHT PICATINNY SCOPE RAIL FOR PIKE ARMS® ELITE22D™, ELITE22TD™ & ELITE22TD™ 80% RECEIVERS - 8-32 FACTORY SCREWS INCLUDED

Expand the functionality of your Tactical Innovations® ELITE22D™ or Tactical Innovations® ELITE22TD™ Takedown receiver, as well as the PIKE ARMS® Elite22TD™ Takedown 80% Receiver with a Pike Arms® billet CNC machined picatinny rail for professionally mounting rings and optics usually reserved for higher priced firearms platforms.  Our REVERSIBLE 10/22 PICATINNY SCOPE RAIL is precision CNC machined in the USA from billet aircraft grade aluminum (not an extrusion or a forging) and anodized for a durable finish. It is available in multiple colors and finishes to match or complement your receiver.

The Pike Arms® REVERSIBLE EXTENDED ELITE22D™ / ELITE22TD™ PICATINNY SCOPE RAIL provides greater forward eye relief for larger optics and is precision machined to provide smooth angles to blend the rail into the receiver.   This extended reversible PICATINNY SCOPE RAIL can also be installed in a reverse pattern to allow shorter scope eye relief for junior shooters with no modifications to the rail or receiver.  So whether your application requires long or short eye relief, this REVERSIBLE SCOPE RAIL provides the versatility for both lengths of eye relief.

This Pike Arms® ELITE22D™ / ELITE22TD™ PICATINNY SCOPE RAIL is countersunk for attachment to your receiver using the four supplied substantial 8-32 cap screws which require no gunsmithing or fitting and can be easily user installed in minutes. Additional 8-32 CAP SCREWS are also available separately (part #01467) if required for other projects.

FEATURES:

  • Low profile picatinny mil-spec profile
  • Picatinny rail is precision machined to exactly match the contour of your ELITE22D™, ELITE22TD™ or ELITE22TD™ 80% receiver for rock solid, straight installation and funtionality
  • Five and one half inches overall length with 13 Picatinny Rail slots to accomodate Dot Sights, Scopes as well as AR15 picatinny compatible rear sights
  • Mulitple picatinny slots allow for precise eye relief for scopes and similar optics
  • Proudly 100% manufactured in the USA
  • Precision machined from aircraft grade 6061 aluminum billet (not a forging)
  • Hand finished with your choice of colors (select when ordering)
  • Ships complete with necessary assembly screws and hex drive tool.  Easily user installed with no gunsmithing required.

NOTE: This rail does NOT fit Ruger® factory receivers.  For Ruger® factory 10/22® receivers, please refer to:

Part #05931 for 3/8" Height Rails

Part #05943 for 1/2" Height Rails

Part #05966 for 3/4" Height Rails

  • PRODUCT NAME STANDARD HEIGHT 3/8" ELITE22D™, ELITE22TD™ & ELITETD™ 80% RECEIVER PICATINNY RAIL MOUNT
  • MANUFACTURER PIKE ARMS®
  • APPLICATION ELITE22D™, ELITE22TD™ & ELITETD™ 80% RECEIVER
    DOES NOT FIT RUGER® FACTORY RECEIVERS
  • NUMBER OF PICATINNY RAIL SLOTS 13 Slots, T-Marked Laser Engraved
  • LENGTH 5.5 Inches Long
  • WIDTH .
  • HEIGHT 3/8 Inch
  • WEIGHT .
  • MATERIAL Aircraft Grade 6061 Aluminum Billet
  • FINISH Choice of Colors:
    Matte Black, Mil-Spec Hard Black Anodized

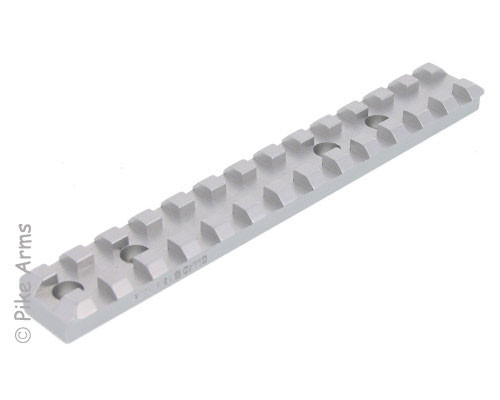

    "Stainless Clear" (For Stainless Steel Rifles)

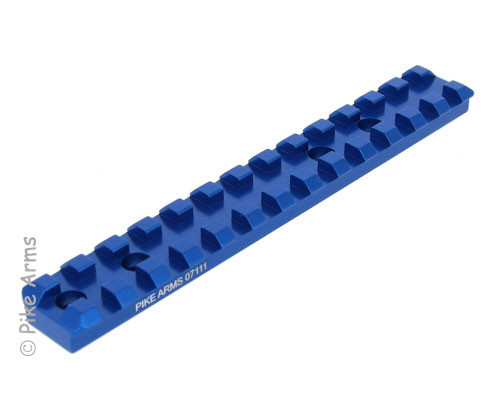

    Blue
    Gold
    OD Green

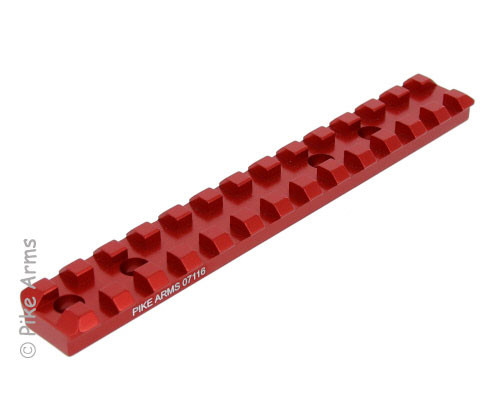

    Red
    Purple
  • ATTACHMENT Screws 8-32, Four (4), Included
