PIKE ARMS®
ADJUSTABLE RECEIVER FIT™
MATCH GRADE
BILLET TRIGGER ASSEMBLY
FOR RUGER® 10/22®
- 2.5 LB TRIGGER RELEASE
- ADJUSTABLE FOR RECEIVER FIT
- REMOVABLE SIDEPLACE ACCESS
- SEAR ENGAGEMENT WINDOW

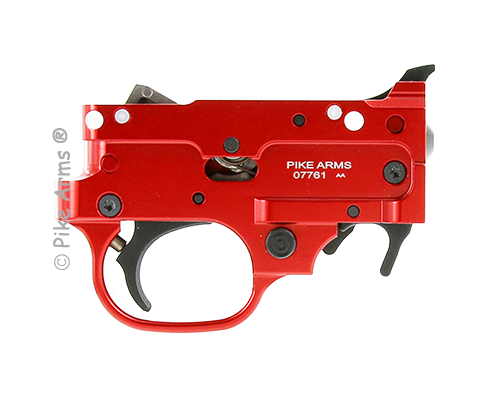

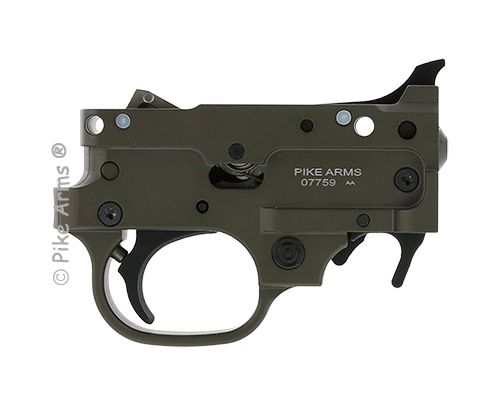

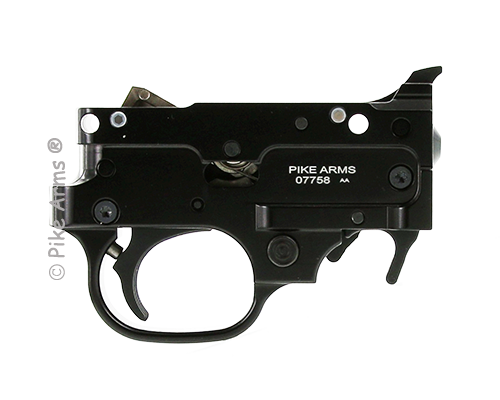

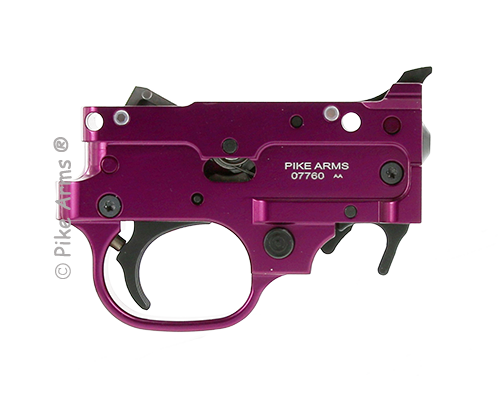

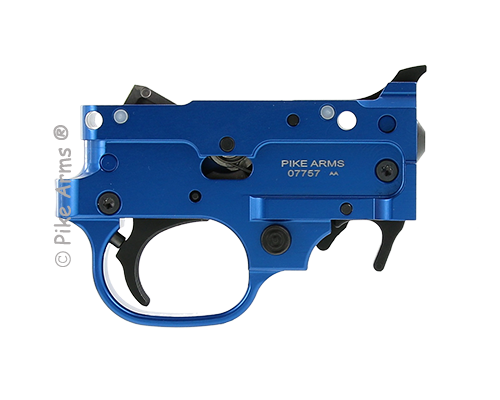

PIKE ARMS® ADJUSTABLE RECEIVER FIT™ MATCH GRADE BILLET TRIGGER ASSEMBLY FOR 10/22®

MATCH GRADE - 2.5 LB RELEASE (-0.0/+.5)

In order to get a perfect fit between the trigger housing and the receiver, the Pike Arms® Adjustable Receiver Fit™ Match Grade Billet Trigger Assembly allows you to individually adjust nylon set screws in the trigger housing to match the width of your receiver for a perfect no wiggle fit between the trigger housing and the receiver, regardless of the manufacturer or the width of the receiver.  The trigger release force is not changed or adjustable.

The Pike Arms® ADJUSTABLE RECEIVER FIT™ MATCH GRADE BILLET TRIGGER ASSEMBLY is precision CNC machined from billet T6 aircraft aluminum and is perfect for custom rifle builds or as a premium upgrade alternative for the current production Ruger® plastic trigger housings.  Each Pike Arms® Adjustable Receiver  Fit™ Match Grade Billet Trigger Assembly ships completely assembled and ready to drop-in to your Ruger® 10/22® or compatible rifle or Charger™ pistol with no gunsmithing required other than quickly and easily setting the fit to match your receiver.

The Pike Arms® Adjustable Receiver Fit™ Match Grade Billet Trigger Assembly ships completely assembled with Ruger® factory BX components installed to include the Ruger® standard plastic trigger and mag release which you can easily upgrade with a Pike Arms® Billet Trigger and / or Pike Arms® Billet Mag Release in a variety of popular colors by purchasing the additional desired part(s) in the colors of your choice.



* Ruger, 10/22 & Charger Are Registered Trademarks of Sturm Ruger & Co., Inc.

Review This Product

PIKE ARMS ADJUSTABLE RECEIVER FIT MATCH GRADE TRIGGER ASSEMBLY WITH BILLET HOUSING FOR  10/22® - MATCH GRADE

Thank you for your purchase of a Pike Arms® Adjustable Receiver Fit Match Grade Trigger Assembly With Billet Machined Trigger Housing for Ruger 10/22® rifles and compatible receivers.  Our trigger housings are made in the USA using modern CNC equipment to exact tolerances to provide a part that will provide many years of functionality and pleasure and can be used as a direct replacement for Ruger factory trigger housings or can be used for custom assembled rifles.

! SAFETY !   PLEASE ENSURE THAT YOUR FIREARM IS NOT LOADED BEFORE CONTINUING.

One difference and advantage our billet trigger housing provides is the inclusion of a trigger return spring and plunger (included standard) which allows you to adjust your trigger travel distance.  Adjustment of the trigger travel is as follows:

    Note: the safety will need to be disengaged at this time to set the over travel properly.

    Pull the trigger rearwards as far as it will go (as if pulling the trigger to shoot).  The over travel can now be precision adjusted by adjusting the setscrew depth as desired using the following guidelines:

 - Tightening the set screw (screwing it in) too much will not allow the hammer to be released.

 - Conversely, if you do not have the setscrew screwed in far enough, you will have excessive trigger travel and the the trigger will contact the trigger guard, resulting in finish damage to the surfaces of both the trigger and the trigger guard.

The position depth of the trigger over travel setscrew DOES NOT affect the trigger pull weight in any way.

NOTE: The Ruger BX trigger assembly is only compatible with Ruger's BX trigger and is not compatible with our replacement billet trigger.

Reliable function and operation requires that all parts successfully work together as intended.   Most assemblies can be completed without any issues (especially when using either all Ruger® parts or all Pike Arms parts).  We do not offer assembly or trouble shooting gunsmithing services and you should seek competent professional local gunsmithing assistance should you encounter a situation that exceeds your comfort or experience level.
