The TAC65 .22LR suppressor continues to set the standard for outstanding performance, light weight and an incredibly low price. As suppressor purchasers become more educated and understand the mechanics and construction of suppressors, the high performance features of the TAC65 at such an affordable retail price continues to make it one of the suppressor market's more popular choices. Compare the TAC65 to any other .22LR suppressor and we're sure that you'll agree that a TAC65 delivers the perfect combination of performance and price.
1. PELLET GUN PERFORMANCE
Do you hate earmuffs when you shoot, especially in the hot summer? Do your neighbors wish you preferred golf to target shooting? Now you can shoot .22LR ammo and have it sound like a pellet gun with our TAC65 suppressor on your rifle or handgun. The reality of current suppressor designs and manufacture is that not much is new in the world of suppressor design and most all modern suppressors us a 2 stage K baffle, as does the TAC65. Performance in decibel reduction to the ear is comparable from one suppressor to the next. Although our meters can quantify db differences between suppressors, db measurements will vary between days, guns, ammunition etc. As a result, we build our suppressor baffle stack first based on our meter and then modify it based on human perception feedback. For instance, a slightly higher db at a different frequency might appear quieter based on the shooter's ability to hear it. Similarly, duration of peak db will have a different impression on your ear. For instance, a micro second at one db level will set a peak level on our meter (regardless of its duration), but it still sounds more quiet than 2 or 3 times the peak length of time at a slightly lower db level. Based on the wide range of differences in db data collection, data integrity and data interpretation, we do not publish meter generated db reductions (which have become somewhat of a joke in the suppressor industry). We are confident that when you shoot a TAC65, you'll agree that its performance delivers.
2. COMPLETELY DISASSEMBLE TO CLEAN OR SERVICE (By The User)
Anyone that's shot .22 rimfire ammo knows how dirty it is. In additon to the dirt, with a suppressor, every shot sends a mist of molten lead out the barrel with the bullet. When the molten lead hits the suppressor, it hardens. An ultrasonic cleaner or home brew solvent will get the carbon out of the suppressor but it will not remove the lead. We have had suppressors that ship brand new at 4.1 ounces and are returned for service at over 12 ounces based on lead build up. The ONLY way to remove lead is to disassemble the suppressor and either wire brush or bead blast it off the baffles. We continue to maintain that .22 LR suppressors have to be cleaned. Think about it? Would you expect your firearm to continue to work at its peak performance if you never cleaned it? Our TAC65, like all of our .22 LR suppressors, can be completely disassembled by the user to include the removal of both endcaps and all the internal baffles, and then cleaned and reassembled. If you don't believe that .22LR ANYTHING can be "sealed and self cleaning", then the ability to disassemble and clean your TAC65 is a feature that will keep your suppressor operating at peak performance for many years to come without costly returns to the manufacturer for service.
3. BLACK HARD ANODIZED FINISH
Our TAC65 suppressor is available in a matte black finish is as durable as it is beautiful. The suppressor tube and both endcaps are hard black anodized. Anodizing is not a paint or a spray on finish, its a molecular change in the material that forms crystals (like diamonds) on the outside of the material. Its the same finish that space and defense contractors and the military require on their parts. The 1/2 x 28 threads that mount the suppressor are also hard anodized. We are frequently asked about steel or titanium inserts for suppressor mounting and don't think it is necessary or useful. In the event the suppressor is not unscrewed from the host firearm for a long time after a lot of shooting, the suppressor can be difficult to unscrew from the firearm. If you have a steel barrel and either steel or titanium for the suppressor mounting and either the barrel or the suppressor thread is going to be damaged to get the suppressor off, we would prefer to see the suppressor cap stripped rather than the threads on the firearm. Its much easier, and less expensive, to unscrew and replace the endcap than to have to get the barrel threaded again. Its been our practical experience that hard anodized endcaps are far more durable than needed thus making steel inserts costly and unnecessary. However, if you want or need a steel insert, don't settle just for an insert, our QUEST SUPPRESSOR is completley manufactured out of stainless steel at a price that most other manufacturer's charge for an aluminum suppressor.
4. PROFESSIONALLY LASER ENGRAVED
To compliment the black hard anodized finish, each suppressor is professionally laser engraved in compliance with BATFE marking requirements, indicating its serial number, model, manufacturer and caliber. Sure laser engraving costs a few dollars more but anything less looks like it costs a lot less. The TAC65 suppressor delivers performance and appearance at a cost that continues to amaze buyers.
5. CAD DESIGNED and CNC MANUFACTURED
Every piece of a TAC65 suppressor is CAD designed and CNC manufactured in our modern CNC machine shop out of American certified T6 aircraft grade aluminim. The backbone of any suppressor is the baffle stack and each baffle is individually lathe machined. There are no stamped parts, hardware store washers, screens, wipes, grease or any other parts that will wear out or have to be repetitively replaced. Our commitment to manufacturing excellence assures you consistent parts interchangeability and the finest workmanship available. We're proud of our baffle design, technology and workmanship and freely provide photographs for your review and evaluation. You wouldn't buy a car without knowing what engine was under the hood, demand the same for your suppressor.
6. MULTIPLE PLATFORM VERSITILITY
One of the major advantages of a screw on "muzzle can" suppressor compared to an integrally suppressed firearm is that it can be used on multiple firearms to best suit the requirement. The TAC65 suppressor is designed for either handgun or rifle use and works well on traditional mounting platforms such as a Walther P22 or a Ruger 10/22 rifle. Use on a P22 handgun, for either the 3.4" or the 5" models, requires a THREAD ADAPTER which installs easily with no modifications to the handgun. Installation on 10/22 rifle requires that either the factory barrel be professionally threaded on centers or simply install one of our REPLACEMENT 10/22 THREADED BARRELS. One other advantage of a screw on suppressor is that it can be disassembled from either end by removing BOTH endcaps to drive the baffles out either end. By comparison, the suppressor on an integrally suppressed firearm (assuming the manufacturer even designed it with the capability of removing the front endcap) quickly becomes soldered together with lead from firing making it difficult, and often impossible to pull the baffles out the front of the assembly as compared to driving them out from either end. Between the inability to use integrally suppressed suppressors on multiple firearms as well as the near impossibility of disassembling them for cleaning, we do not offer integrally suppressed firearms.
7. IF OUR NAME IS ON IT, WE MAKE IT AND SERVICE IT
Many other "manufacturers" put their name on a product that they don't build. EVERY TAC65 suppressor that we sell, we make every piece of it and are intimately familiar with its function, assembly and operation. We operate a fulltime firearm CNC manufacturing machine shop with live customer service, not answering machines. We have the parts, the staff and the experience in-house to service and troubleshoot our products, resulting in fast turnarounds and hassle free service for you, our valued customer. You should expect nothing less from any other suppressor manufacturer.
8. MYTH: "IT HAS TO BE EXPENSIVE TO WORK WELL"
The truth is that suppressors don't have all that much material in them and volume production with our modern CNC lathes make manufacturing costs per unit very reasonable. We base our profit margins on volume, which means we can sell our suppressors at prices that are considerably lower than many other manufacturers' prices that produce small quantity runs or even individual "handmade pieces". Our modern CNC machines ensure the highest workmanship and consistent quality part after part.
In addition to our economy of scale manufacturing volume, we do not run multiple expensive magazine ads each month and we do not print color catalogs with our suppressors surrounded by flashy artwork, both of which are expensive and the cost has to be added to the selling price of the suppressors. We bypass the expense and pass the savings on to you. Your satisfaction and referrals are our best advertising.
Tactical Innovations offers multiple .22LR suppressors in different construction materials, sizes and prices to suit virtually any use, requirement, budget or personal perference. In addition, all of our .22LR suppressors can be disassembled for cleaning and service by the user and are supported by our commitment to customer service.
TAC65 - "The Work horse"
The TAC65 is our most popular suppressor. It has often been described as the perfect intersection between performance, cost, and size. Its a "workhorse" that continues to deliver year after year for a price that can't be beat. For most shooters that want a solid can at a price that won't break the bank, the TAC65 is the perfect companion for your rifle or pistol every time you go camping, hiking, hunting, plinking or fishing.
STRATUS - Minimum Size & Weight
The .22LR STRATUS suppressor, as its name describes, at 2.4 ounces is so light that many customers have to look inside it to make sure it's not an empty tube! Every possible machine work element and performance feature is included in the STRATUS suppressor, to include lightening where ever possible, vortex exit cap, constant pressure two stage "K" baffle system, and minimum size and length, all in a package that is approximately 3/4" shorter and almost 1/10 of an inch smaller in diameter than our TAC65. For customers that want the smallest, lightest, quietest possible suppressor, the STRATUS is it. We've had customers ask what we would build for a lightweight .22LR suppressor if price was no option... even at multiple times the price, and there are no additonal features that we'd be able to add or incorporate regardless of the price. Given its premium features, performance, size and weight, and all at a production price, our STRATUS suppressor is an easy choice!
QUEST - Compact Stainless for Semi or Full Auto
The only way to improve on the STRATUS suppressor was to make it out of stainless steel. The QUEST suppressor is the same geometry, size, premium features and performance as the Stratus, but instead of an ultra lightweight aluminum package, the QUEST's stainless steel construction makes it robust enough for responsible full auto fire, while still being light enough for traditional handgun and rifle use. For customers that want a multipurpose can, or that shoot A LOT and want a suppressor that can handle years of shooting and cleaning, the QUEST is the suppresor you'll want.
DIAMOND - Hard Full Auto Fire
Very few customers will need our DIAMOND suppressor, but for those that do, there is NOTHING else like it! Too many customers were using our TAC16 .223 suppressor for hard full auto .22LR fire, and although it works, it's too big and heavy for a .22LR application. The DIAMOND suppressor is made for HARD .22LR FULL AUTO FIRE, such as from our AM15 or an AM180. Multiple 275 round drums back to back is what the DIAMOND is made for. Its stainless steel construction, incorporating both blast baffles and "K" baffles, along with its custom radially finned exterior, makes it a premium suppressor that delivers drum after drum. Although its weight makes it marginally uncomfortable for traditional .22LR handguns and rifles, for rimfire full auto blasting, the DIAMOND suppressor has no equal for strength, performance and size.
tac-65 exc can very quiet.I have a great way to clean it too.Take it app soak it in simple green using a sonic cleaner.Before you put it back together spray all internals with welding anti spatter.You will get no lead build up no carbon deposits that cant be wiped of with a cloth.. ole george
I just got my TAC65 today! I immediately installed it onto my Savage MKII FVSR and it looks great. I shot Remington's Subsonic ammo. It was AWESOME! This is my first suppressor and I am very impressed. It's a great product at such a great price!
I just shot through this suppressor for the first time this past weekend, and I absolutely love it! I was using it on a Ruger 10/22 with a Tactical Innovations threaded 10/22 16.5 inch 1:9 twist barrel. As a side note, I went with the 1:9 twist instead of the 1:16 twist in case I ever wanted to use 60gr .22 ammo. The ammo used that day was CCI subsonic 40 grain ammo, and it was amazingly quiet through the suppressor (it also functioned flawlessly in my gun). Seriously, the sound of the bullet ripping through the 1/4 inch plywood target at 25 yards was louder than the sound at the shooter. This was my opinion as well as that of the other 10 people who were present at the outdoor shooting range that day (many who had never seen a suppressor other than on TV, and a few who thought I had been shooting am airgun until they came over). The bolt noise was the loudest sound near the shooter (I will replace my steel bolt buffer with a urethane (or whatever) buffer just for the heck of it, but that is just to quiet the action noise of the 10/22... Not a problem on a bolt action but I don't have one with a threaded barrel... yet. A few more things... I was surprised how light the suppressor is, the craftsmanship is TOP QUALITY, and because I read a few reviews on other sites that people had trouble getting theirs apart after a while, I pre-lubed the endcap threads with a silicone spray. After 100 rounds, they could just as easily unscrew off by hand with the endcap tool as they could before I ever fired it. All in all, a GREAT buy. If you are considering buying this suppressor, just stop thinking about it and do it. You will not be disappointed.

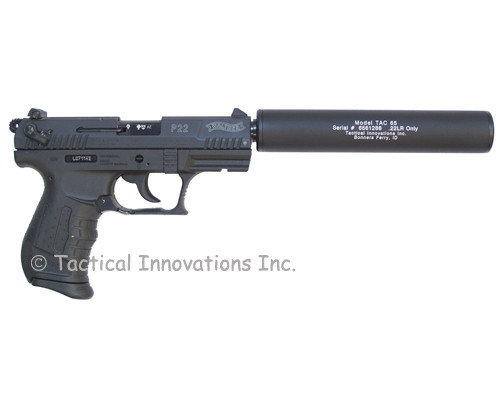

I have this can on a Walther P22 with attached laser and it is a blast to shoot. I also have a Ruger 10/22 with TacSol SBX barrel that the can fits. It works great on both guns. I have used remington, cci, fiochi and aguila sub sonic ammo without issue. They all function in the guns and very little noise when shooting. Great suppressor for the price. Very easy to take apart and clean.
OK, here is the skinny;
This is my first can. Love it. My primary host (a S&W M&P 15/22) had a problem and is now back at S&W for repairs. I have now put over 2500 rounds through this can. Most have been through my Colt AR15 with a SARCK kit. I was hesitant to put the can on this setup because of the 1:7 twist. I did not want a bullet leaving and hitting a baffel or the end cap. Since the S&W is out of the picture for who knows how long, I took that first chance. SHOOTS QUIET with standard velocity ammo. I have used Ely sport, Remington standard velocity and CCI standard velocity. The CCI standard velocity is the CLEANEST and most consistant. Never had a sonic crack with CCI, about 1 in 20 with Remington (when it worked) and none with Ely ( but dirty dirty dirty) I can hear the bullets strike my wood backstop. Too much fun!!
All Tactical Innovations .22LR suppressors have threaded endcaps to
allow the user to disassemble them for cleaning and service. Many
manufacturers will claim to have "self cleaning" suppressors or that
swishing a solvent in the suppressor will sufficiently clean your
suppressor. We all know how dirty .22's are, and suppressors wind up
with a lot of that dirt in them. Ultrasonic cleaners will remove the
carbon and dirt but WILL NOT remove the lead build up.
There are two different schools of thought on the suppressor cleaning
issue. Most users are willing to clean their suppressor as necessary to
ensure its long life with no problems while other users never
disassemble their unit and attempt to clean it as much as possible by
soaking or ultrasonic, without ever disassembling it. If you choose to
not disassemble your suppressor, eventually it will get leaded up to the
point that it will no longer be functional and disassembly will be
difficult to impossible. While it's true that you can get away without
cleaning a suppressor for a long time (possibly 10's of 1000's of
rounds), eventually the lead will get so thick that the bullet will
literally have to squeeze through the now undersize hole in the baffle.
If you're the kind of shooter that we are, and you want to shoot your
suppressor A LOT, we want you to be as happy with your suppressor years
down the road as you are with it when you get it. The ability to
disassemble the suppressor for cleaning or service without the need to
return the suppressor to the manufacturer to have it cut open as
required by other manufacturers, is a significant advantage of the TAC
series of suppressors over other manufacturers' offerings.
Since .22LR ammo is not jacketed (the copper coated washed bullets are
not the same as a jacketed bullet), you will experience lead buildup in
addition to carbon and dirt. Each time you shoot any .22LR ammo, a mist
of lead leaves the barrel and when it reaches the colder suppressor, it
will instantly harden on the suppressor surface and continually build
up. The frequency of cleaning will depend on the ammunition that you
shoot, since some are dirtier than others. We suggest that you clean
your suppressor the first time after a couple 100 rounds so you'll
understand the process before it gets too hard to take it apart. There
is no need to clean it any more often than you have to based on your
difficulty to disassemble it. Generally 2500 to 3500 rounds has been
the preferred cleaning frequency that customers have reported but many
customers wait for 5000+ rounds. More frequent cleaning intervals, such
as after each use, are not necessary and serve no benefit to the
Cleaning without disassembly can easily be accomplished with either an
ultrasonic cleaner or simply soak it by immersion in a parts washer.
DO NOT USE any cleaner that has ammonia in it since it will disolve your
suppressor and baffles causing permanent damage. DO NOT use gasoline
or kerosene, you stand the risk of exploding the suppressor when you
next fire it. Drain it completely, wash it out well with water, shake
out any excess water, fire a round or 2 to get the remaining water out
and then lightly mist spray with non-flamable oil. You'll be able to
remove the dirt and carbon using this method but your will not be able
to remove the lead.
ENSURE YOUR FIREARM IS NOT LOADED
After ensuring that your firearm is not loaded, remove the suppressor
from the firearm. You CANNOT take it apart while its still attached to
SOAK THE SUPPRESSOR
The can should be soaked prior to disassembly to aid in disassembly.
We recommend a gallon of WD40 in a large plastic jar and leave it in to
soak overnight. Spraying some oil into the can will be of minimal to no
benefit. Soak it. After soaking, remove from the oil, drain, wash the
exterior to remove any oil, dry the exterior.
REMOVE ONE ENDCAP
You will need MINIMALLY one Assembly & Disassembly Tool to unscrew
the caps. We recommend two. Put one tool into a vice and lock it in.
Stand the suppressor up on the tool. Place the second tool on the top
of the suppressor. Use a 1" wrench to turn the top tool while at the
same time push the suppressor down on the bottom tool. Loosen whichever
cap unscrews first only about 1/4 to 1/2 of a turn. Do not completely
unscrew the cap. Just loosen it at this point.
REMOVE SECOND ENDCAP
Whichever cap loosened first, align that cap with the driver tool that
is locked in the vice. Put the still tight cap up. Align the second
driver tool into the still tight top cap. Use either a rubber strap
wrench or someone with really strong hands to turn the suppressor tube
clockwise while you unscrew the top cap. Completely remove the top cap,
then either by hand or with the strap wrench, completely remove the
already loosened bottom cap.

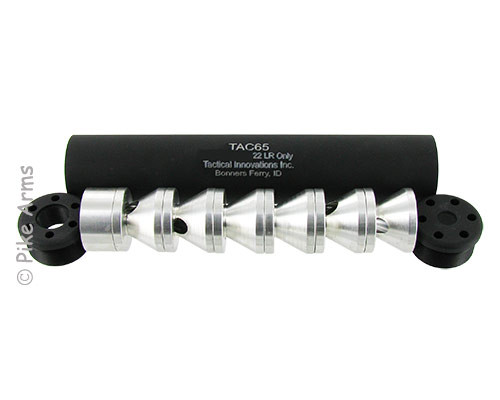

REMOVE BAFFLES FROM TUBE
The baffles will be difficult to remove from the tube since the lead
has soldered them together and into the tube. You will be able to see
the lead build up especially on the first baffle. There will be a ring
of lead around each baffle which has to be broken in order to drive the
baffles from the tube. Use a 3/4" diameter wooden dowel cut 7 inches
long to tap / hammer the baffles out. The easiest and safest way to
accomplish this is to have your buddy hold the tube in the air while you
use the dowel and a plastic face lead deadblow hammer to tap the
baffles out, alternating from one end to the next. Once you get the
first one moving, the rest will move as well since the lead ring has
CLEAN THE TUBE ID & INSIDES OF BOTH CAPS
Use a soft brush to clean the inside of the tube so that you can slide
the baffles back in for reassembly. Do not use any hard brushes that
will damage the finish inside of the suppressor tube. Similarly, do not
use any solvents or cleaners with ammonia or similar that will disolve
aluminim. Scrub the insides of the caps. Do not scrub the threads.
After a lot of use, it may become necessary to clean the 1/2x28 thread
with a class 2B tap. A tap can be purchased on line from MSCDIRECT.
Use caution when chasing the threads with a tap since the tap is capable
of incorrectly cutting new threads in the cap. The tap should by used
by hand only to clean the existing threads if necessary.
CLEAN THE BAFFLES
The baffles will never be shiny aluminum and they don't need to be. The
preferred method of cleaning is to abrasive blast each baffle until all
of the lead has been removed. Although it takes a lot of abrasive
blasting to damage the baffles, if you were to use high air pressure and
very coarse abrasive, and stay in one spot for too long, its possible
to damage a baffle. Use common sense and good judgement and it will be
difficult to damage the baffles.
If you do not have access to an
abrasive blast cabinet, you can usually get someone at the local machine
shop or car repair to either do them or let you use there cabinet for a
very reasonable fee.
As a last
resort, you can try to use
a brush to clean the baffles to remove any large deposits, ensuring
that the ports and vents are not in any way blocked. However, it is
almost impossible to get the baffles clean with only a brush.
Also note, that there is NO solvent /
cleaner / chemical that will remove the lead and not also damage the
aluminum baffles since if it will take the lead off, it will also damage
the aluminum baffels. In addition, the resultant solution is highly
toxic and is a hazmat which requires stringent disposal requirements.
Disposal in the drain or on the ground could get you in big trouble.
To clean the inside of the
tube, Sears sells a small 3 stone brake hone that will easily fit a 1"
tube. When placed on an electric drill, you should lightly oil the
inside of the tube and using the brake hone will remove the lead rings
in the tube. As long as you don't over hone the tube, only the lead
rings will be removed and the inside of the tube will be nice and smooth
and the ID will not change.
A small amount of "Never Seize" or "No Seize" (which is used on
automobile exhaust manifold bolts and is available at any auto parts
store) on the endcap OD threads, will facilitate future disassembly. To
assemble, screw the rear cap (1/2x28 hole in it) on to the tube first,
paying attention to orient the lettering on the tube correctly. Use the
driver tool that is still in the vice to hand tighten the rear cap as
tightly as you can get it by hand. DO NOT use the strap wrench or any
other tools. Insert the baffles from the front of the can with the flat
surface first and the cone second (the bullet goes through the flat
part of the baffle first), spiraling the baffles every 90 degrees as you
put them in. Screw on the front cap and use the same driver in the
vice to HAND torque it. You should have tight baffle compression
between the caps and there should be between 0.000 and 0.004 gap between
the tube and the front cap (about the thickness of a piece of paper).
If there is more than that, the baffles are not clean and the dirt is
making them longer and / or you need to HAND torque the front cap a
little more. Visually verify that the bullet path through the
suppressor is unobstructed. Shoot 3-5 rounds to compress the baffle
stack and then retorque the cap.
If you need any replacement parts for your suppressor, the suppressor
will need to be returned. Per ATF regulations, we will not ship individual parts even if you
send us your damaged parts.
DON'T DAMAGE THE SUPPRESSOR
If you follow these disassembly steps, you'll notice that no propane
torches, vice grips, pipe wrenches etc are specified in the disassembly
SOP. If you use alternate holding and turning methods, please MAKE SURE
that you don't damage the suppressor. The potential for most damage
should be obvious before it happens. You should be able to disassemble
and reassemble your suppressor for a lifetime of use without damaging
the unit. If you do damage the suppressor tube (which has the serial
number), per ATF regulations we are unable to replace the damaged tube
with another tube with the same number. A damaged tube means the
suppressor is lost.
I CAN'T GET IT APART / I DON'T WANT TO FOOL WITH IT
If you give up and can't get it apart, or you just don't want to fool
with it, BEFORE you damage the suppressor, we can usually get any
suppressor apart at our facility. Disassembly and cleaning is based on
our shop rate of $65 / hour with a one hour minimum. Depending on how
badly your suppressor is leaded together, we can usually get it
disassembled and back together in approx an hour of shop time as well as
whatever parts need to be replaced. Contact us for a work order form
before shipping your suppressor back to us.
Email or call if any questions, we're glad to help!
Select a state in the map below to find dealers
HOW TO BUY A SUPPRESSOR
Using the DEALER tab for your state, check for a Class 3 dealer local to you that might have the suppressor you want in stock or that will assist you with the transfer for a pre-agreed upon fee. ANY class 3 dealer in your state can receive and transfer you a suppressor. We CANNOT sell you a suppressor directly. You must go through an in-state Class 3 dealer.
Call your local CLEO (sheriff, chief etc) and ask him what his procedure is for signing Form 4 federal applications for NFA transfer and ownership. Make sure that he will sign BEFORE you buy the firearm or suppressor. If he won't sign, you can't have it and he has not legal obligation to sign. Your possession of a state issued concealed carry permit does not make any difference. Often your local in-state dealer can offer advise on which counties and sheriffs will sign.
Have your in state Class 3 dealer send us a copy of his license with original ink signature and a copy of his SOT receipt if we don't already have it on file. Your in-state Class 3 dealer will help you with the paperwork required to complete the transfer.
SUPPRESSOR PURCHASING REQUIREMENTS
Most people are not aware that an average citizen can own a machine gun or a suppressor (silencer) by completing the appropriate paperwork and paying the corresponding fees. Here is a summary of the basic requirements for NFA ownership (suppressors or machine guns):
You have to live in a state that allows its citizens to own the type of firearm that you want to purchase. For instance, some states do not allow any NFA firearms, others allow machine guns but not suppressors while most others allow all NFA. Your local in-state Class 3 dealer will be able to tell you if you can legally own a suppressor in your state. Obviously if you are in anti-gun states such as CA, you can NOT own a suppressor.
You have to meet the federal requirements of the 4473 "Yellow Form", such as 21 or older, clean criminal background, no dishonorable discharge, US citizen, etc. Basically if you can legally purchase a handgun, you can legally purchase an NFA (Class 3) firearm.
There is no license required to own an NFA (Class 3) firearm. There is a one time tax that must be paid to ATF when you apply to have the registration transferred to your name. There is no ongoing yearly fees charged by the ATF. For machine guns, suppressors, short barrel shotguns, short barrel rifles and destructive devices, there is a one time $200 tax in addition to the purchase price of the firearm. For an AOW (Any Other Weapon) firearm, there is a $5 transfer tax. Even if you purchase 10 machine guns and 10 suppressors, EACH one would have a $200 tax. ATF will issue a tax stamp for $200 upon your approval and that tax stamp along with the form that it is affixed to is your receipt and proof of legal ownership.
The sheriff or chief of police or state police, whichever is YOUR Chief Law Enforcement Officer must be willing to sign your Form 4 (Application for Tax Paid Transfer and Registration of an NFA Firearm) attesting that he does not know of any reason that you should not have the NFA firearm. Whether you have a concealed carry permit, have a perfectly clean criminal background, voted for him or whatever, it is at the discretion of the CLEO (Chief Law Enforcement Officer) whether or not he will sign. He has no legal obligation to sign and if he will not sign, ATF will not process your application for Tax Paid Transfer and Registration of an NFA Firearm, and you will not get the firearm. If you own a corporation, you can transfer the NFA firearm to the corporation and no CLEO signature is necessary.
You have to be fingerprinted by the CLEO and the print cards are submitted to ATF along with your $200 tax and your completed Form 4 (Application for Tax Paid Transfer and Registration of an NFA Firearm).
You have to have the serial number before any paperwork can be printed or processed to begin the transfer to you which means that you have to pay for your firearm in order to start paperwork unless other arrangements are made between you and your instate dealer.
It takes about 90 days for ATF to approve the transfer of your NFA firearm to you. During that time, your local dealer who provided you with the Form 4 application, will maintain possession and ownership. After ATF approves the transfer and returns the approved Form 4 to your local dealer, then you can take possession of the suppressor.
Some states (such as LA, MD etc) have additional state transfer and licensing requirements. Some states will only allow its citizens to purchase C & R (Curio and Relic) firearms which are designated by ATF to be C & R status. Generally only original (not USA made remanufactured firearms such as MACs) firearms qualify as C & R and as such they command a premium price.
TOTAL COST FOR NFA PURCHASE
Everyone wants to know what is the TOTAL Bottom line cost for buying an NFA firearm. Here is our best attempt to give you a total cost. Remember that it will vary by state and local requirements and this list is intended to serve as an estimate, not as an all inclusive list encumpassing every possibility in every situation. Therefore we can not guarantee that your buying experience will work out financially exactly the same.
Cost of the firearm and any accessories
Shipping and insurance from us to your local in-state dealer if you don't buy it from an in-state stocking dealer.
$200 one time transfer tax for EACH NFA item EVERY TIME YOU BUY ANOTHER ONE. There is no annual fee.
Local Class 3 dealer charge, generally $50 - $100 but actual fee is between you and the dealer you workout. Different local in-state dealers charge different fees and also offer varying degrees of service. It's between you and your dealer. Stocking Dealers generally charge no fee since they are buying from us at wholesale and selling to you at MSRP.
Local CLEO fee for background check and or finger prints. Some charge, some don't.
NFA TRANSFERS FOR IDAHO RESIDENTS
Given that you can meet the purchasing requirements outlined above, we will receive NFA firearms from out of state dealers and process Form 4 transfers to qualified ID residents for $100 per NFA firearm.
Larger firearms requiring more storage space, such as most beltfeds and Destructive Devices, will be subject to additional storage charges.
We are not selling you a gun, we are providing a transfer service. Sales tax, if due, is your responsibility.
A transfer is a transfer. We will not negotiate with your out of state dealer. We will not call him to ask questions. We will not get involved in any disputes or legal proceedings between you and your dealer. We will not process shipping damage claims. We will not fill out his paperwork for the transfer from the out of state dealer to us. For the $100 transfer fee, we will mail a license to the out of state dealer. We will receive your firearm and log it into our inventory. It must arrive shipping prepaid. We will not pay for any COD shipments, regardless of the amount. We will print and mail you paperwork and will store your firearm until ATF returns your approved transfer, at which time we will contact you to arrange a time for the transfer. You should inspect your firearm(s) before they are transferred to us. If a firearm arrives and you decide not to do the Form 4 transfer to yourself and want the gun transferred to another out of state dealer, the same $100 fee still applies for our time, accounting, storage and paperwork.
Firearms not received by you within 3 years from the date of our receipt FOR ANY REASON will be deemed abandoned property and you relinquish any title or claim to the firearm. In other words, we will not store it forever.
Your firearm will not be fired, displayed or handled (other than to verify serial numbers etc) while in our possession.
While in our possession, your firearm will be boxed in identical condition as received. In other words, we will not clean it, shoot it etc while its here.
All of our .22LR suppressors are threaded 1/2x28 tpi. One of the advantages of having a threaded muzzle suppressor is that you can easily move it from one threaded gun to another thus maximizing the use of the suppressor. Some firearms, like the Walther P22 and the factory threaded SIG Mosquito are easily adapted for a suppressor by simply installing one of our thread adapters which require no gunsmithing or machine work. Other firearms, like a Ruger 10/22, you can simply swap the barrel for one of ours that are already professionally threaded, for not much more than a CNC barrel threading job would cost with shipping each way.
For other firearms, the barrel would need to be threaded correctly. The firm that threads the barrel should have previous experience in barrel threading. It is our recommendation that you don't have "a friend" experiment on your barrel for his first attempt using a 1926 flat belt lathe that he has to dust off to use. One the barrel is threaded incorrectly, it can not be "re-done". The barrel would have to be cut and threaded shorter which often is not possible since the new length would then be less than the 16.0" required for a rifle per ATF regulations. Improper threading could also result in damage to the suppressor, such as baffle and endcap strikes.
Before you thread (or have a barrel threaded), you should make your machinist aware of the following guidelines (in no particular order):
1. If possible, it should be CNC threaded and not done on a manual lathe since the CNC will not give you the wasted clearance groove at the shoulder.
2. If you have to do it manually, the clearance groove should be as minimal as possible and not .125. A clearance groove of .093 or LESS is preferable (since you only have .400 of thread, you don't want to waste 25% of it on a clearance groove).
3. The thread should be 1/2 x 28 tpi and it should be verified on certified go / no-go ring gauges.
4. You should have .400 length of thread from the shoulder, nothing longer.
5. The shoulder should be .600 OD and must be square and perpendicular.
6. The thread must be concentric to the ID bore. The barrel should be turned on centers since the bore is never concentric with the OD of the barrel.
7. A thread protector should be installed to make sure that the threads are not damaged when not in use.
8. If possible, its advantageous for the firm doing the threading to have the endcap so that they can verify that the fit between the barrel and the cap are a perfect match.
9. The barrel material should be steel. Barrels that are carbon fiber or other plastics do not hold up well for threading.
10. Multiple adapters will increase the angular error and increase the probability of a baffle strike.
11. You will NOT be able to determine if the barrel is threaded correctly by dropping a cleaning rod in it, looking down it, etc. If your accuracy is way off, most likely the bullet it rubbing the endcap on the way out of the suppressor due to an alignment issue.
12. We do not thread barrels (other than CZ 75 Kadet handgun barrels). Please do not send us your gun or your barrel. We will ship it back at your expense without threading it. For threading, any machine shop or local gunsmith, as well as a variety of firms that advertise on the internet, should be able to provide you with a professional threading job at a reasonable price.
Email if you have any questions that we've missed.
