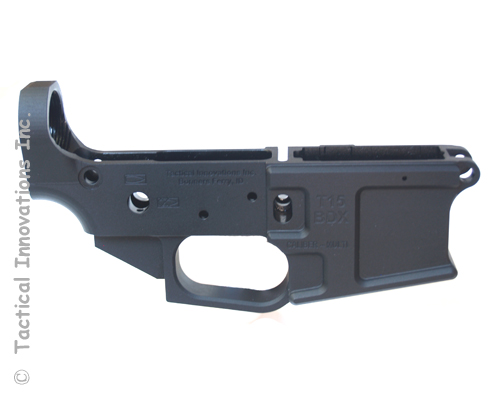

T15BDX (Billet DeluXe) CNC BILLET MACHINED AR15 LOWER RECEIVER
[smarb2b-blk#]
 $214.99

Our T15BDX TM (Billet DeluXe) Lower Receiver "cuts no corners" in the manufacturing process or the materials used. It is designed to provide serious AR15 style builders with a billet machined receiver that has every available feature included, at a price that makes it an easy choice over a traditional mass produced forged receiver. Since it is often difficult to compare receivers (other than on price and cosmetic appearance), we've listed below the features that will demonstrate why only a T15BDX TM Lower Receiver will be suitable for your next build.

"The finest AR receiver on the market." - WG in NM
"Ever feature I wanted, and then some." - RP in MD
"Assembly was as easy as the looks are good!" - MM in MS

T15BDX TM RECEIVER - EVOLUTION FROM BILLET BAR STOCK

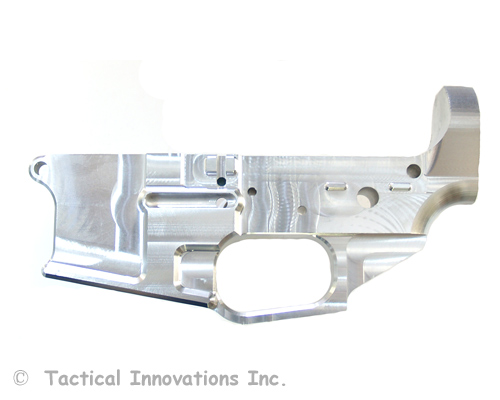

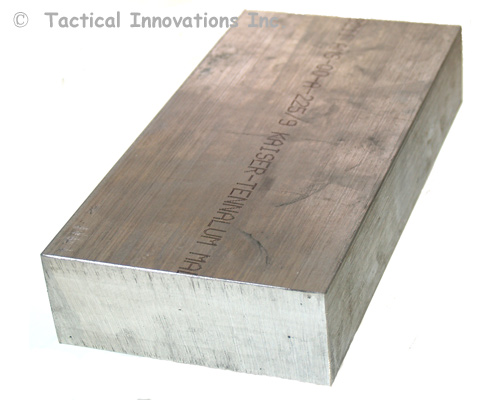

  1. PRECISION CNC MACHINED FROM SOLID BILLET ALUMINUM

Our TI25BDX TM Lower Receivers are precision machined on modern CNC machining centers from solid billet aluminum bar (not from a forging or a casting) for maximum strength, appearance and precision tolerances. Manufacturing is NOT sub-contracted to third party machine shops. If our name is on it, we make it here in our North Idaho manufacturing facility with complete control over all aspects of the manufacturing process. Each receiver undergoes numerous quality checks throughout the machining process to ensure unparalled accuracy and dimentional tolerances.

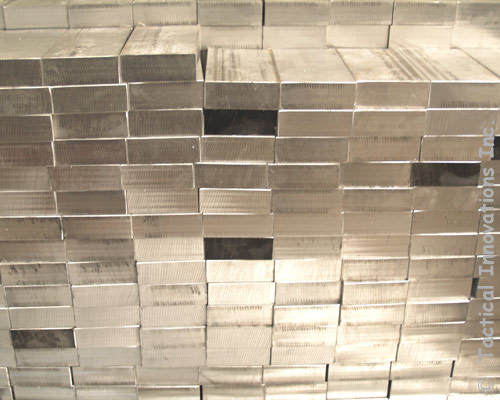

  2. MANUFACTURED FROM 7075 T6 ALLOY ALUMINUM BAR (NOT 6061)

All T15BDX TM Lower Receivers are manufactured from certified USA produced 7075 T6 aircraft grade aluminum alloy bar stock. Sure, we could save a few dollars on the material and our tooling by using less expensive softer 6061 aluminum alloy, but a premium receiver has to start with the best material. Other manufacturers claim that 6061 will hold up just as well as 7075... but we don't want alloy strength to be a discussion now or an issue later, so we only use the stronger, more expensive 7075 alloy for all of our receivers. Would you put re-treads on a brand new car to save a few dollars? Of course not...

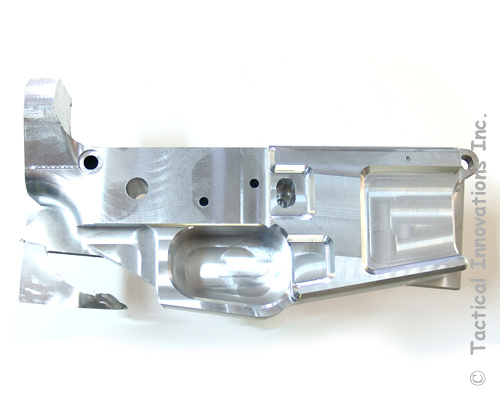

  3. WIRE EDM MACHINED MAGWELL







Machining the magwell of all AR15 style lower receiver presents a few challenges since the magwell has square corners and it needs to be as smooth as possible on the inside for mag changes. To remove the material from the receiver for the magwell, most manufacturers machine from one side and then flip the receiver and machine from the other side to meet in the middle (and hope for no mismatch). But you still don't have square corners (since a round cutting tool will not cut a square corner), so they then they press a broach through the magwell to cut the round corners square. Its fast and does an "OK" job but for a finish that is considered by many to be the premium result, WIRE EDM is unparalleled.
All of our T15BDX TM Lower Receivers have WIRE EDM MACHINED MAGWELLS. Wire EDM machining uses a .010 (ten thousandths diameter) brass wire that passes an electrical current through it while the part is underwater. The wire does not touch the part, but arcs the current to the aluminum while flushing with high pressure water. When the complete magwell slug falls from the part, the result is that (1) the finish is unmatched for smoothness, (2) the corners are exactly square and (3) there is never any mismatch from machining from both sides and hoping to meet in the middle since its cut all the way through in one pass.
So why doesn't every manufacturer wire EDM machine their magwells? Simple... it takes about 30 minutes per receiver to wire EDM machine EACH receiver on a machine that new costs close to $100k. Is it an over kill to machine AR15 magwells? We don't think so. Check out the magwell on one of our T15BDX TM Lower Receivers and see why you won't settle for "good enough" for your next receiver either!

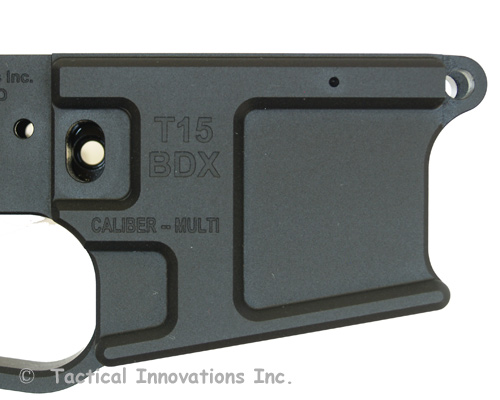

  4. LASER ENGRAVED MARKINGS



To engrave the ATF required markings on our T15BDX TM Lower Receivers, we use the same laser technology that is used to mark diamonds and expensive medical equipment. The result is deep engraving that is crisp and clean and looks like it belongs on a custom high quality receiver. Safe and fire positions are designated with universal "bullet logo" pictographs for the elegant appearance that is generally found only on higher priced firearms.

We cleanly mark the receiver with ATF's required information and do not clutter the receiver with logos or other advertisements. Why don't other lower receiver manufacturers also laser engrave their receivers? Once again it's laser machine cost and additional manufacturing time, but we think laser engraving is worth it!

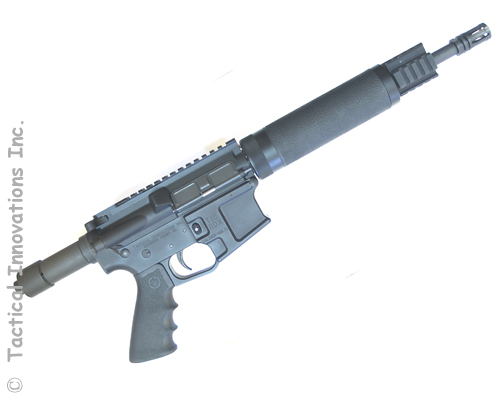

  5. SHIPPED AS A "RECEIVER" - YOU DESIGNATE RIFLE OR PISTOL

Since our virgin stripped T15BDX TM Lower Receiver can be assembled in either a pistol or a rifle configuration (subject to ATF regulations), no designation of pistol or rifle is marked on the receiver which allows you to assemble it in either configuration you prefer (contact ATF for assembly restrictions and guidelines). The receiver is equally suited for either application.

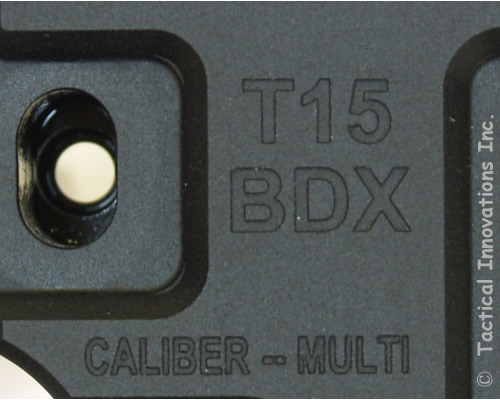

  6. MULTI CALIBER MARKED

AR style lower receivers are the host to a large variety of calibers beyond the traditional .223/9mm/22LR choices. In order to maximize your caliber use opportunities, each T15BDX receiver is laser engraved to designate the caliber as Caliber - Multi to provide you with the maximum assembly flexability.

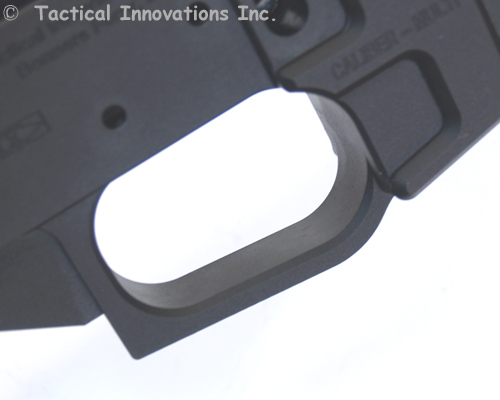

  7. MACHINED "WINTER" TRIGGER GUARD

All T15BDX TM Lower Receivers have a "winter" trigger guard integrally machined as a part of the receiver. The integrally machined trigger guard adds aesthetic beauty as well as functional strength to the receiver by providing a structural bridge to reinforce the fire control section of the receiver. The trigger guard is large enough to easily manipulate the trigger, even with a light glove on.
  8. UPPER RECEIVER TENSIONING SCREW - INCLUDED STANDARD



With the varying tolerances in upper receivers, its optomistic to hope that the recevier you use will be a perfect fit on any lower receiver and we all know that a loose fitting upper receiver will make even the best custom built rifle seem sloopy. Most shooters solve the problem with a wedge under the upper receiver lug when the receiver is closed. It works well, but is cumbersome.

Our T15BDX TM Lower Receivers come standard with an easier solution. A nylon tipped allen wrench drive screw is installed that can be adjusted through the bottom of the receiver. The upper receiver tensioning screw allows you to put exact pressure on the upper receiver for a perfect upper receiver fit everytime.

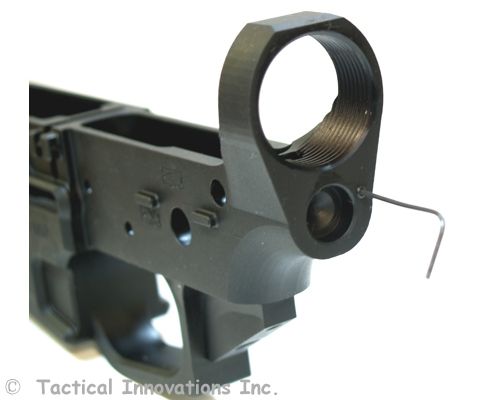

  9. REAR PIN DETENT CAPTURE SCREW - INCLUDED STANDARD

Have you ever taken the stock off of an AR15 lower receiver and had the rear pin spring shoot out across the room? Our T15BDX TM Lower Receivers solve the problem by installing an allen wrench drive screw in the spring channel. Once you install the detent and the spring, simply screw the set screw in flush with the rear of the receiver. Switch stocks as often as you want and the lost spring problem no longer exists!

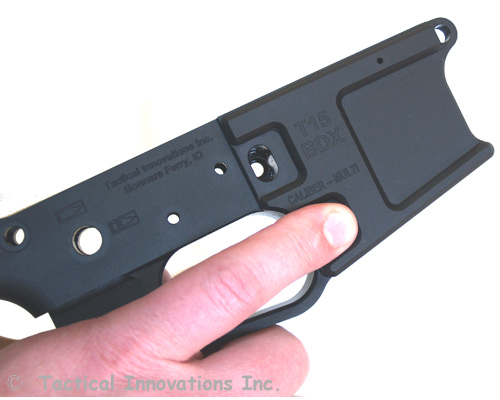

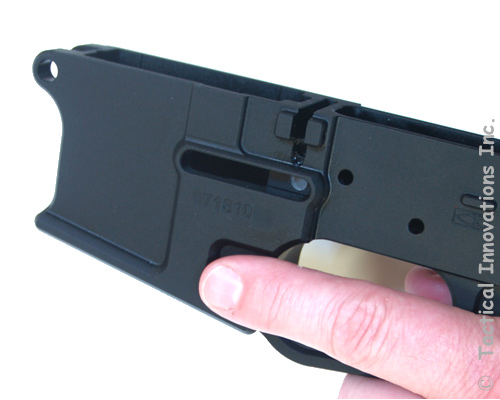

  10. FINGER SAFE TM POSITION LEFT & RIGHT SIDE



Firearm handling safely dictates that the shooter's trigger finger should always be in the safe position on the side of the receiver and NOT on the trigger until ready to fire. Our T15BDX TM Lower Receiver features a patent pending FINGER SAFE TM position on both the left and right sides of the receiver. When your finger is not on the trigger, you now have an exact indexed place for your finger to be (much like feeling the keys on a keyboard).

Law enforcement and training facilities will appreciate the FINGER SAFE TM positions since they leave no room for ambiguity regarding trigger finger positions for trigger safety.

  11. REINFORCED CRITICAL STRENGTH AREAS
The T15BDX TM Lower Receiver is designed to be the strongest aluminum receiver available. Both the left and right sides of the T15BDX TM Lower Receiver are reinforced to provide maximum strength. The reinforcement on the right side provides a pocket area for quick easy magazine changes while the reinforcement rib on the left side of the receiver ensures that the magazine release will not protrude beyond the height of the receiver when the mag catch is pressed. Additional strengthening in critical areas includes (1) the front pin, (2) the stock extension tube and (3) the rear of the trigger guard.


RIGHT SIDE
MAGWELL


LEFT SIDE
MAGWELL


FRONT PIN
RADIUS


STOCK
EXTENSION
  12. HAND FINISHED FOR A PREMIUM APPEARANCE

Most manufacturers "finish" their receivers in a bulk vibrator that indiscriminatley rounds all edges in addition to the sharp ones. However, a receiver with these features and precision can only be finished one way... individually by hand! Each T15BDX TM Lower Receiver is individually hand de-burred to remove all sharp edges from the machining process and then is individually abrasive blasted for a smooth, uniform surface finish in preparation for the final hard anodized finish. Our final visual quality control is simple to understand... "If our finishing crew wouldn't buy it with their paycheck, we won't send it out. Period."
Thanks for taking the time to read why we believe our receivers offer the greatest quality and value of any receiver on the market. If you're ready to build an AR15 style firearm and want to start with a receiver that is worthy of your time and financial investment, our receivers can be purchased through any FFL holder identically to any other firearm. We're proud to put our name on our T15BDX TM Lower Receivers and invite you to personally inspect the machining quality, the laser marking, the plentiful additional features and the individual hand finishing that make our T15BDX TM Lower Receiver a receiver that you'll be proud to own and pleased to shoot.

AR LOWER RECEIVER
CHECKLIST
 1. Billet Machined
 2. 7075 Allow (Not 6061)
 3. EDM Machined Magwell
 4. Laser Engraved
 5. No Pistol / Rifle Designation
 6. Multi Caliber Marked
 7. Machined Trigger Guard
 8. Upper Receiver Tensioning
     Screw
 9. Rear Detent Capture Screw
10. Finger Safe TM Positions
11. Reinforced Critical Strength
     Areas
12. Hand Finished
ALL RECEIVERS ARE NOT CREATED EQUALLY.

PRODUCT SPECIFICATIONS
PRODUCT NAME T15BDX TM Lower Receiver, Stripped
Manufacturer Tactical Innovations Inc.
Application AR Style Rifles & Pistols
Caliber Multi Caliber
Material Billet Bar Stock
Alloy 7075 T6 Aircraft Aluminum
Finish Hard Black Anodized
Available Finishes Matte Black Only
Engraving Laser Engraved
Weight (Stripped) 10.2 Ounces
Mil-Spec Yes, Uses All Mil-Spec Parts
FFL Required Yes. FFL Required To Purchase. Contact Your Local Gun Store.
Restrictions No Sales To CA or where otherwise restricted.
No International sales.
Retail Price $214.99 Ea
FFL Dealer Pricing Email or fax (208-267-1597) a legible FFL copy with contact name, telephone, fax and email on the face of the license for confidential dealer resale pricing.
