$144.99 $129.99

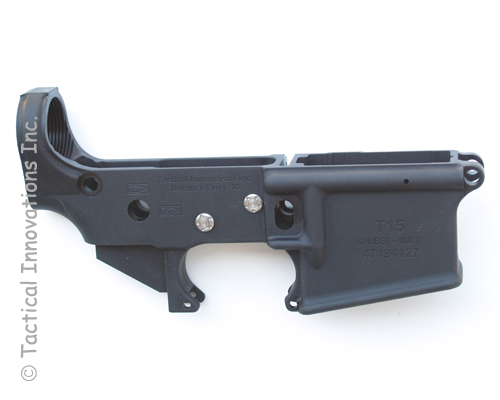

T15 AR15 LOWER RECEIVER WITH STBATM INSTALLED[smarf1tb]
Click to enlarge
Our T15 precision machined forged lower receivers includes features that are generally only offered on our higher priced billet receivers. Now we've taken quality one step farther by including the factory installation of our patent pending STBATM - S tainless T rigger & B ushing A ssembly. Since it is often difficult to compare receivers, we've listed below the features that will make our T15 Lower Receiver an easy choice for your next build. Inspect one, compare it to any other forged receiver and we're confident that your next AR will be built on a T15 Receiver. Quality does not have to be expensive, and we prove it with each of our T15 Receivers!
"Unbelievable quality, especially for the price." - CJ in MD "I looked at 4 others, no comparison." - SB in WA "One to build and 9 for the safe..." - KW in NC
1. FACTORY INSTALLED STBATM - S tainless T rigger & B ushing A ssembly
The traditional steel hammer and trigger pins in the aluminum receiver have always been an area of concern for all AR15 shooters. In addition, the tolerances between the trigger and the trigger pin and the trigger pin and the receiver need to be as close as possible to provide a crisp trigger without creep and similar errors that will effect accuracy. Now with the addition of our STBATM - S tainless T rigger & B ushing A ssembly, you can easily solve all of the issues associated with hammer and trigger pins in your AR receiver including: 1. hammer/trigger pins precision CNC machined to .154
2. no steel pin to aluminum receiver wear consideration
3. stainless receiver bushings are threaded for replacement if necessary
4. alignment is maintained at high tolerances due to precision fit between receiver bushing and pin
These T15 receivers are manufactured for the installation of the STBATM - S tainless T rigger & B ushing A ssembly and are installed before they are shipped to your dealer. The CNC machined precision hex head non-rotation hammer and trigger pins are included, ready for your final assembly with your fire control parts.
Never worry about pin wear, pin alignment or pin sizes again. Our STBATM - S tainless T rigger & B ushing A ssembly - Another Tactical Innovations Exclusive!
2. PRECISION CNC MACHINED FROM US CERTIFIED FORGINGS
Our TI25 Lower Receivers are precision machined on modern CNC machining centers from US certified aluminum forgings for maximum strength, appearance and precision tolerances. Manufacturing is NOT sub-contracted to third party machine shops. If our name is on it, we make it here in our North Idaho manufacturing facility with complete control over all aspects of the manufacturing process. Each receiver undergoes numerous quality checks throughout the machining process to ensure unparalled accuracy and dimentional tolerances.
3. MANUFACTURED FROM 7075 T6 ALLOY ALUMINUM FORGINGS (NOT 6061)
All T15 Lower Receivers are manufactured from certified USA produced 7075 T6 aircraft grade aluminum alloy forgings. Sure, we could save a few dollars on the material and our tooling by using less expensive softer 6061 aluminum alloy. Other manufacturers claim that 6061 will hold up just as well as 7075... but we don't want alloy strength to be a discussion now or an issue later, so we only use the stronger, more expensive 7075 alloy for all of our receivers.
4. WIRE EDM MACHINED MAGWELL
Machining the magwell of all AR15 style lower receiver presents a few challenges since the magwell has square corners and it needs to be as smooth as possible on the inside for mag changes. To remove the material from the receiver for the magwell, most manufacturers machine from one side and then flip the receiver and machine from the other side to meet in the middle (and hope for no mismatch). But you still don't have square corners (since a round cutting tool will not cut a square corner), so they then they press a broach through the magwell to cut the round corners square. Its fast and does an "OK" job but for a finish that is considered by many to be the premium result, WIRE EDM is unparalleled.
All of our T15 Lower Receivers have WIRE EDM MACHINED MAGWELLS. Wire EDM machining uses a .010 (ten thousandths diameter) brass wire that passes an electrical current through it while the part is underwater. The wire does not touch the part, but arcs the current to the aluminum while flushing with high pressure water. When the complete magwell slug falls from the part, the result is that (1) the finish is unmatched for smoothness, (2) the corners are exactly square and (3) there is never any mismatch from machining from both sides and hoping to meet in the middle since its cut all the way through in one pass.
So why doesn't every manufacturer wire EDM machine their magwells? Simple... it takes about 30 minutes per receiver to wire EDM machine EACH receiver on a machine that new costs close to $100k. Is it an over kill to machine AR15 magwells? We don't think so. Check out the magwell on one of our T15 Lower Receivers and see why you won't settle for "good enough" for your next receiver either!
6. SHIPPED AS A "RECEIVER" - YOU DESIGNATE RIFLE OR PISTOL
Since our virgin stripped T15 Lower Receiver can be assembled in either a pistol or a rifle configuration (subject to ATF regulations), no designation of pistol or rifle is marked on the receiver which allows you to assemble it in either configuration you prefer (contact ATF for assembly restrictions and guidelines). The receiver is equally suited for either application.
7. MULTI CALIBER MARKED
AR style lower receivers are the host to a large variety of calibers beyond the traditional .223/9mm/22LR choices. In order to maximize your caliber use opportunities, each T15BDX receiver is laser engraved to designate the caliber as Caliber - Multi to provide you with the maximum assembly flexibility.
9. REAR PIN DETENT CAPTURE SCREW - INCLUDED STANDARD
Have you ever taken the stock off of an AR15 lower receiver and had the rear pin spring shoot out across the room? Our T15 Lower Receivers solve the problem by installing an allen wrench drive screw in the spring channel. Once you install the detent and the spring, simply screw the set screw in flush with the rear of the receiver. Switch stocks as often as you want and the lost spring problem no longer exists!
10. HAND FINISHED FOR A PREMIUM APPEARANCE
Most manufacturers "finish" their receivers in a bulk vibrator that indiscriminately rounds all edges in addition to the sharp ones. However, a receiver with these features and precision can only be finished one way... individually by hand! Each T15 Lower Receiver is individually hand de-burred to remove all sharp edges from the machining process and then is individually abrasive blasted for a smooth, uniform surface finish in preparation for the final hard anodized finish. Our final visual quality control is simple to understand... "If our finishing crew wouldn't buy it with their paycheck, we won't send it out." Period.
Thanks for taking the time to read why we believe our receivers offer the greatest quality and value of any receivers on the market. If you're ready to build an AR15 style firearm and want to start with a receiver that is worthy of your time and financial investment, our receivers can be purchased through any FFL holder identically to any other firearm. We're proud to put our name on our T15 Lower Receivers and invite you to personally inspect the machining quality, the laser marking, the plentiful additional features and the individual hand finishing that make our T15 Lower Receiver a receiver that you'll be proud to own and pleased to shoot.
AR LOWER RECEIVER CHECKLIST
1. STBATM Installed
2. Precision Machined
3. 7075 Allow (Not 6061)
4. EDM Machined Magwell
5. Laser Engraved
6. No Pistol / Rifle Designation
7. Multi Caliber Marked
8. Upper Receiver Tensioning Screw
9. Rear Detent Capture Screw
10. Hand Finished
ALL RECEIVERS ARE NOT CREATED EQUALLY.
PRODUCT SPECIFICATIONS
PRODUCT NAME
T15 Lower Receiver, Stripped
Manufacturer
Tactical Innovations Inc.
Application
AR Style Rifles & Pistols
Caliber
Multi Caliber
Material
Precision Forging
Alloy
7075 T6 Aircraft Aluminum
Finish
Hard Black Anodized
Available Finishes
Matte Black Only
Engraving
Laser Engraved
Weight (Stripped)
9.0 Ounces
Mil-Spec
Uses All Mil-Spec Parts
FFL Required
FFL Required To Purchase. Contact Your Local Gun Store.
Restrictions
No Sales To CA or where otherwise restricted.No International sales.
